 Products Categories
 Hospital Furniture/Ward Equipments (Patient Transfer Trolleys)

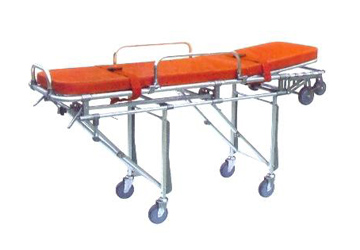

AMP-03PT01 : Ambulance Stretcher
  • Light weight, strong structure, lovely design, good arts and crafts, easy antisepsis, small size, convenient to use.
  • Utilizes high precision mechanical transmission.
  • Can be used automatically folded through the left and right hand control handle.
  • Made of high quality aluminum alloy tubes.
  • Dimensions :
    • High position : 1,900 x 560 x 900mm.
    • Low position : 1,900 x 560 x 280mm.
  • Load weight : upto 120Kg.
  • Product weight : 40Kg
  • Diameter of the castors : 125mm.
  • Applicable for various kind of hospitals, emergency centers, ambulances and battle fields.

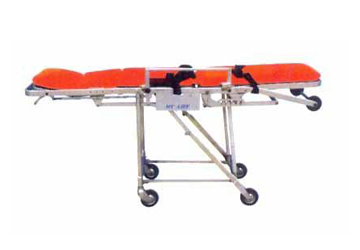

AMP-03PT02 : Wheelchair Stretcher with Varied Positions
Automatic wheelchair type stretcher is mainly used to transport the sick, wooded outdoor. Itís a necessary accessory on ambulances and could be folded as wheelchair in narrow stairs or elevators. This model I s made of high quality aluminum alloy, with characteristics such as light weight, good appearance, reasonable configuration, convenience operation, antisepsis. Besides, it also can prevent rust and easy to clean. It has soft foam mattress on the surface and protecting block sidely. Itís an easy operation stretcher.

Technical Parameter:
  • Product Size (L x W x H): 190 x 59 x 85cm
  • Net Weight: 45kg
  • The Bearing Pressure: < 159kg
  • Dimesion of the Packing Box: 200 x 60 x 27cm
  • Gross Weight: 55kg

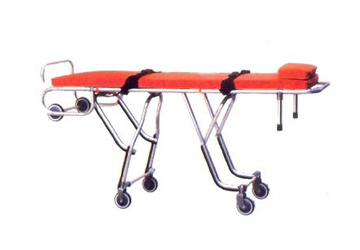

AMP-03PT03 : Multifunctional Stretcher with varied positions
Multifunctional automatic stretcher with varied positions, used for first-aid, is a unique design. It can easily adjust to various positions for emergency treatment under any complicated situations, especially compatible with ambulance environment. The stretcher can be adjusted to 6 levels and fold back and forth according to practical needs. When bent forward, the back of the stretcher is supported by fixed pneumatic springs with strapless controlling to up 60 degree angle. Equipped with front and back fixation support design, the stretcher can be locked in place into the ambulance at a desired position.

Technical Parameter:
  • Maximum Size (L x W x H): 197 x 55 x 93cm
  • Minimum Size (L x W x H): 197 x 55 x 33cm
  • Load Bearing: Upto 159kg
  • Net Weight: 40kgs
  • Gross Weight: 50kgs
  • Maximum Angle of Leaning Forward: 11 degrees
  • Maximum Angle of Leaning Backward: 25 degrees
  • The Height Scope of Touching Down (6 Grades)
    • 98cm x 94cm x 87cm
    • 77cm x 60cm x 34cm
  • Dimension of the Packing Box : 200 x 58 x 40cm

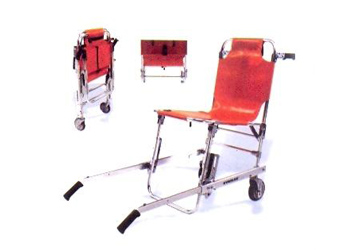

AMP-03PT04 : Wheel Chair Stretcher
Wheelchair type stretcher, made of high quality aluminum alloy, it is mainly used in some areas with difficult traffic or entry such as narrow halls, gangways, cloister or stair with several turnings.

Technical Parameter:
  • Folded Size: 93 x 51 x 16cm
  • Folded into Wheelchair
    • Back-Height- 91cm, (Width) 50cm
    • Seat-Height- 49cm, (Width) 50cm
  • Net Weight: 8kg
  • Dimension of the Packing Box: 100 x 55 x 20cm
  • Gross Weight: 12kg

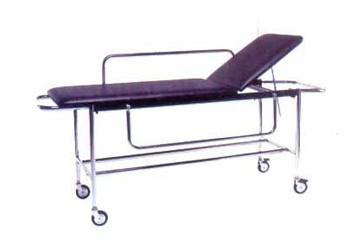

AMP-03PT05 : PATIENT TROLLEY WITH FIXED CUSHIONED 2 SECTION TOP
  • Overall Approx. Size: 210L x 56W x 81H cms.
  • Frame work made of Tubular MS Pipe
  • Swing away type Safety Side Railing.
  • Adjustable I.V. Rod.
  • Two section Foam padded Top.
  • Brackrest Adjustable: Trolley Mounted on 15cms.
  • Dia Castors: Two with Brakes.
  • Epoxy Powder Coated Finish.

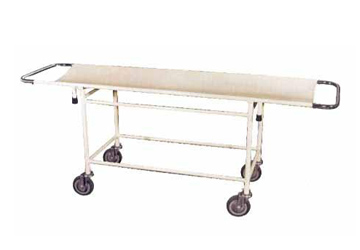

AMP-03PT06 : STRETCHER TROLLEY
  • Size : 213L x 56W x 81H cms)
  • Frame work of CRC Tubes Mounted on 15cms Castors.
  • Removable stretcher top with Chrome Plated Handle.
  • Pre-treated and Epoxy Powder Coated finish without Matress.

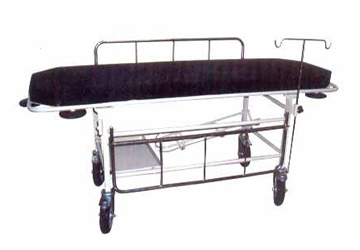

AMP-03PT07 : STRETCHER ON TROLLEY WITH MATRESS
  • Overall Approx. Size: 180L x 56W x 81H cms.
  • Frame work made of Tubular MS Pipe.
  • wing Away type Safety Side Railing.
  • Adjustable I.V. Rod, Utility Tray, Cylinder Cage.
  • Foam Padded Top.
  • Trolley Mounte on 15cms Dia Castors- Two with Brakes.
  • Epoxy Powder Coated finish.

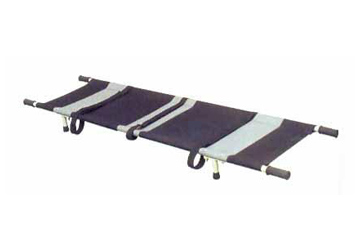

AMP-03PT08 : FOLDING STRETCHER (CANVAS)
  • Size: 213L x 56W x 15Hcms
  • M.S. Pole width wise fold.

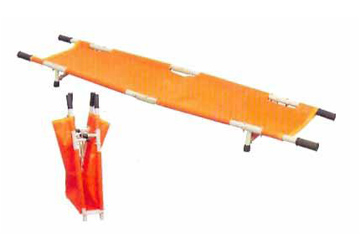

AMP-03PT09 : Folding Stretcher (Canvas)
  • Size: 213 L x 56W x 15 H Cms.
  • Aluminium Poles but Folding Lengthwise as well as Width Wise.
