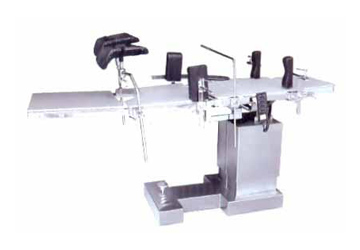

AMP-03SO01 : Electric Operating Table for use of C-Arm Image Intensifier |
|
 |
Modern design Electric operation Table Radio Translucent Top for use of c-Arm Image Intensifier such as general Surgery and certain special surgical procedure etc. Central position table column and inter changeable head & leg section for maximum use of C-Arm image Intensifier. Smooth and accurate positioning by Remote Control for Hi-Lo, Trendlenbueg / Reverse Trendlenburg, Lateral Tilt & Head side Raising / Lowering. Base and column are covered with stainless steel sheet.
STANDARD ACCESSORIES:
- Rubber Mattress Set
- Anaesthetist Screen
- Padded Shoulder Support
- Wrist Strap
- Arm Rest
- Padded Lateral Support
- Padded Lithotomy Crutches
OPTIONAL ACCESSORIES:
- Universal Orthopaedic Attachment
- S.S Instrument Tray with Hanger
- S.S Urology Tray
- Neuro Surgery Attachment
- Arm Surgery Attachment
TECHNICAL DATA:
- Overall Length: 192 cm
- Width Over Side Railing : 57 cm
- Height: 30 Min. / 40 Max
- Lift: 10 Inches
Positions:
- Trendlenburg & Reverse : 25 Degree
- Trendlenburg
- Lateral Tilt : Both Sides 22 Degree
- Head Section Detachable : 90 Degree Up
- Leg Dection : 90 Degree Down (manual)
- Flex/Reflex : 30 Degree/220 Degree
|
|
|
| |
|

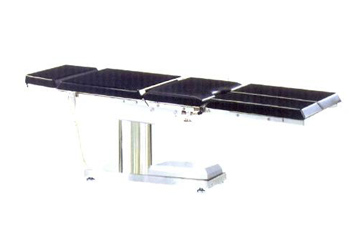

AMP-03SO02 : Electric Hydraulic Operation Table |
|
 |
GL A serial opration tables are classic in design and made up of high- intensity SSmaterial.
1.Wholly imported maintenance- exempted hydraulic power system with super service life.
2.Microelectronic controller, with optional foot paddle switch.
3.Operation body postures in line with ergonomics, suitable for different kinds of operations.
4.No gap, leakage or swing at the changing of body postures; ensuring the stability, durability and Safety of table top.
5.Optional electronic control floor lock to ensure the stability of the table.
6.Assembled polyurethane mattress shaped in 1shot at the table top, easy to disassemble.
7.Excellent after Sales service.
Basic parameters for GL serial electronic hydraulic operation table:
Size of table : 550x2000 mm
Scope of hosting : 500 -1080 mm
Head Rest : ± 90 degree Leg Plates : 0-90 degree (disassembly)
Standard Accessories:
- Mattress Pad (1 Set)
- Head Rest (1 Pc)
- Leg Plate (1 Pair)
- Handhold Controller (1 Pc)
- Arm Board (Higher and Lower, 1 for each)
- Chest and Waist Supporter (1 Pair)
- Shoulder Supporter (1 Pair)
- Leg Crutches (1 Pair)
- L-Size Anesthesia Screen Frame (1 Pc)
Optional Accessories:
- Waist Rising Rest (Outlaid)
- Skull Supporter
- Leg Retractor (Separate)
- Leg Retractor (Integral)
- Kneeboard
- Tray
- Double Deck Arm Rest
- Xray Film Cassette Support
- Vertebral Support
- U Size Anesthesia Screen Frame
- IV Stand
- Foot Active Controller
|
|
|
| |
|

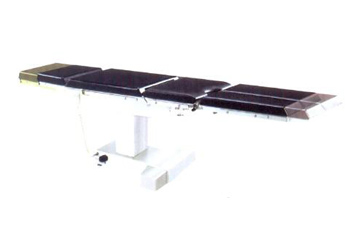

AMP-03HB03 : Fully Electric Operation Table |
|
 |
Electric operation tables are made of imported generators. It is easy for operation and stable in working. During the process of changing body postures in operations, it ensures no gap, leakage or swing; it ensure stability, durability and safety of the table top; and it ensures the generator working in consent speed , without noise, no leak of electricity or anti electromagnetism. Even if the weight loading is increased, the speed of the generator will not be affected. The t-shape base allows the operation table high stability and good mobility, and offer more space for doctors to move their legs, so as to decrease the fatique after long time operations.
Basic Parameters:
- Size of Table: 550x2000 mm
- Scope of Hoisting: 500-1080 mm
- Head Rest: ± 90 degree
- Leg Plate: 0-90 degree (Disassembly)
- Suitable for common surgery, orthopedics, anorectal Surgeries; The Table top can be moved
vertically and levelly, which provide the maximum space for perspective of C-Type buttock so as to ensure no blind angle for X-ray photograph.
|
|
|
| |
|

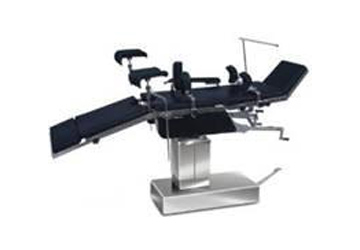

AMP-03SO04 : Head Operating Universel Table |
|
 |
Manual hydraulic operating table are driven by hydraulics, air pressure or machinery method. It is fast, safe and durable. The surface have three systems; steel with spray-Painted; half-stainless steel, with spray- painted; half stainless steel ; whole stainless steel Table top includes parts of head, back, buttock and leg. Any model has inlaid hidney bridge. It is suitable for different body postures in different kinds of surgeries.
Standard Accessories:
- Mattress Pad (1 Set)
- Head Rest (1 Pc)
- Leg Plate (1 Pair)
- Arm Board (Higher and lower, 1 for each)
- Chest and Waist Supporter (1 Pair)
- Leg-Crutches (1 Pair)
- L-Size Anesthesia Frame (1Pc)
|
|
|
| |
|

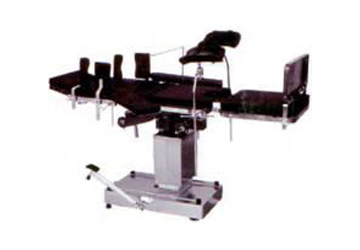

AMP-03SO05 : SURGICAL OPERATING TABLE HYDRAULIC SIDE END CONTROL |
|
 |
Features:
- A single action twin concealed cylinder Hydraulic pump controlled by a foot pedal.
- Fully S.S. covered based mounted on Heavy duty castors with auto floor locking system.
- The Detachable leg section provides easy lithotomy positioning. Five section S.S. Top with l arge perineal cutout for drainage tray, built in Kidney bridge. The improved hydraulic system provides smooth movement and the speed of lowering the table is permanently set. The table is finished with extra hard, permanent finishOvan baked paint and all the accessories are bright chromium plated.
Standard Accessories:
- Anaesthetic Frame
- Padded Side Supports
- Intravenous Armboard
- Padded Shoulder Supports
- Wristlets
- Lithotomy Leg Holder with Straps
- Footrest with S.S Top
Technical Data:
- Length of the table top: 180 to 195 cms.
- Width of the table top: 50cm
- Minimum Height: 80 ± 5 cms.
- Maximum Height: 95 ± 5 cms.
- Hydraulic Lift: 22 cm
- Lateral Tilt: 20+ 2 cms.
- Longitudinal Tilt: 30+ 1cms
Optional Accessories:
- Water Proff Rubber Matress
- Radio-Graphic Top
- Neurosurgical Attachment
- Geopel type Lithotomy Crutches with Straps
- Orthopaedic Attachment
|
|
|
| |
|

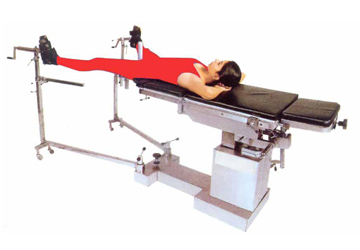

AMP-03SO06 : Hydraulic Operation Table |
|
 |
c Arm Compatible with / without Orthopedic Attachment
STANDARD ACCESSORIES:
- Pelvic Rest in 3 Sizes.
- Pelvic Support (Radio Translucent)
- Inner Thigh Support (Radio Translucent)
- Foot Plate with Ortho Shoes
- Tibia Attachment
- Hand surgery Table (Radio Translucent)
- Hand Traction Device (Humerus Positioning)
- Spl. Head Rest for Shoulder Surgery
- Steinmen Pin Holding Clamp
OPTIONAL ACCESSORIES:
- Spinal Frame with Head Support.
Note : Orthopedic attachment is compatible to all UNITE C-Arm tables
Technical Data:
- Overall Length: 192 cm
- Width over side Railing: 57 cm
- Height: 30 Min. - 40 Max
- Lift: 10 Inches
Positions:
- Trendlenburg & Reverse: 25 degree
- Lateral Tilt: Both Sides 22 degree
- Head Section Detachable: 900 UP
- Leg Section : 90 Degree Down (Manual)
- Flex/Reflex : 30 degree / 220 degree
|
|
|
| |
|

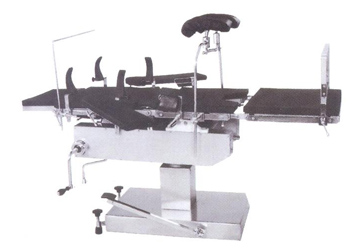

AMP-03SO07 : SURGICAL OPERATING TABLE HYDRAULIC (MAJOR HEAD END CONTROL) |
|
 |
Features:
- This is a latest design head end control operation tables suitable to perform all operations such as abdominal, thyroid, gall bladder, kidney, neurosurgery, plastic surgery etc by obtaining flex, r eflex, lateral tilt, trendelenburg, reverse trendelenburg and chair position by the anesthetist who can control these positions by sitting at the head end side of the table.
- Study and heavy duty base covered S.S. sheets for durability of table.
- Single action double cylinder hydraulic pump which can be raised to minimum & maximum height as mentioned in specification. it can be obtain by foot paddle.
- Five section S.S Top, with detachable legend section.
- All the positions can be maneuvered from head end side by moving the handle as mentioned on the indicator dial.
Technical Data:
- Length of the Table Top: 180 to 195 cms.
- Width of the Table Top: 50cm
- Minimum Height: 75 ± 5 cms.
- Maximum Height: 95± 5 cms.
- Hydraulic Lift: 20 cms
- Lateral Tilt Both Sides: 20 degree ± 2 degree
- Flex: 90 degree
- Reflex: 220 degree
- Longitudinal Tilt: 45 degree ± 3 degree
Standard Accessories:
- Anaesthetic Frame
- Padded Side Supports
- Intravenous Arm Board
- Padded Shoulder Supports
- Wristlets
- A Pair of Knee Crutches
- Footer with SS Top
- Lateral Side Supports
- Kidney Bridge
- Water Proof Rubber Matress
Optional Accessories:
- S.S. Tray with Bracket for Instruments
- Permeable Tops for X-Ray Cassettes
- Neuro Surgery Accessories
- Ortho Attachments
|
|
|
| |
|

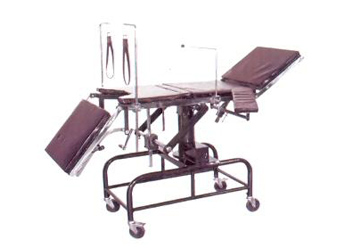

AMP-03SO08 : OPERATION & EXAMINATION TABLE (Hi-Li) |
|
 |
Tubular Frame work on 10cms castors with brakes. This is anexceptionally fine surgical table. With facility of hight adjustment by crank mechanism. Offering a very comprehensive range of positions viz., "straight", trendlenburg & reverse trendlenburg positions, chair, lithotomy position etc.
Size: 72Χ20Χ32
|
|
|
| |
|

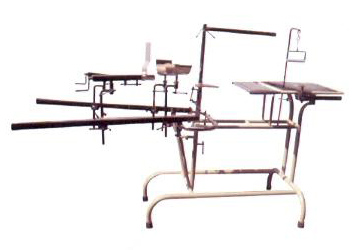

AMP-03SO09 : OPERATION & EXAMINATION TABLE |
|
 |
Size: 72" x 20" x 32" fixed height
Tubular Frame work on 10cms castors with brakes. This is an exceptionally fine surgical table. With facility of height adjustment by crank mechanism. Offering a very comprehensive range of positions viz., "straight", trendlenburg & reverse trendlenburg positions, chair, lithotomy position etc.
|
|
|
| |
