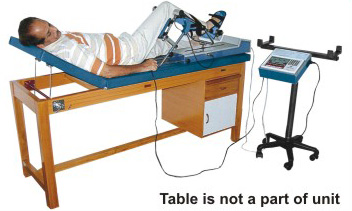

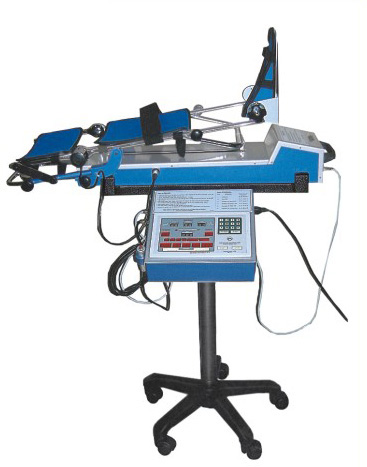

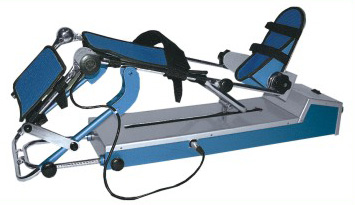

Varun Knee CPM, a micro-computer controlled unit, represents the latest breakthrough in CPM technology. Solid state circuitry control panel with highly visual LED Digital readouts allows Flexion and Extension of knee joint through a prefixed Range of Motion and Time. Proper fit of Calf and Thigh lengths are easily achieved. The necessary limb support provide comfortable surface for prolonged contact & are washable in cold water. The light weight unit is constructed of Aluminum Sheet & is placed on a movable trolley.
TECHNICAL SPECIFICATION :
Therapy Modes. : SIX, Mobilization Modes for Continuous, Intermittent and Progressive passive movements.
ROM Setting. : Programmable from 00 to 110 deg
Pause Time. : Programmable Extension / Flexion Pause from 00 to 99 seconds.
Treatment Time. : Programmable from 01 to 99 min.
Inching Switch. : Starting angle can be set according to the need of patient.
Memory/Programme : 30 Treatment Protocols can be programmed & stored in memory.
Displays. : Digital display of ROM settings Pause Time, Treatment Time and display of Mobilization modes.
Patient Safety : Patient Stop/interrupt treatment with hand held switch.

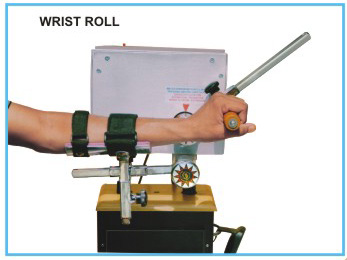

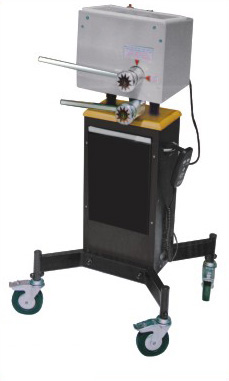

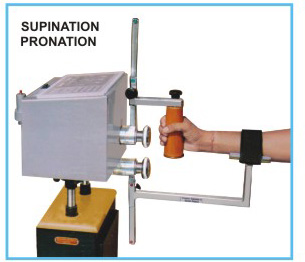

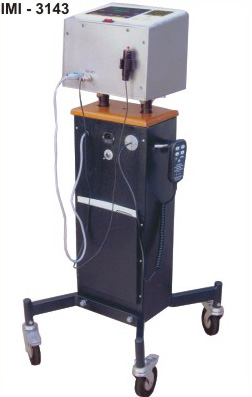

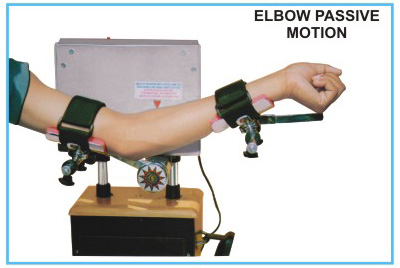

PANKAJ Elbow CPM, a micro-computer controlled unit, represents the latest breakthrough in CPM technology. Solid state circuitry control panel with highly visual LED Digital readouts allows Flexion and Extension of Elbow joint through a prefixed Range of Motion and Time. Wrist rotation and Wrist roll movement can also be achieved. Unit is fitted on mobile Electrical Jack to adjust height according to patient requirement. Comes with necessary accessories for Supination / Pronation, Wrist Roll and Elbow passive motions.
TECHNICAL SPECIFICATION :
Therapy Modes. : SIX, Mobilization Modes for Continuous, Intermittent and Progressive passive movements.
ROM Setting. : Programmable from 00 to 130deg for Elbow movements. And : -90 to +90 for Wrist movements.
Pause Time. : Programmable Extension / Flexion Pauses from 00 to 99 seconds.
Treatment Time. : Programmable from 01 to 99 min.
Inching Switch. : Flexion or Extension starting position can be set according to the need of patient.
Memory/Programme : 80 Pre-set treatment patterns are stored in memory.
Open Programmes. : 20 programmes are Free to store your own patterns.
Displays. : Digital display of ROM settings Pause Time, Treatment Time and Graphic display of Mobilization modes.
Height Adjustment : Electrically, by Push button switches.
Arm Settings. : Right or Left arm can be set & exercised by little adjustments.
Patient Safety : Patient Stop/interrupt treatment with hand held switch.
