We have quality products in Hydro Therapy Equipments. All our models are efficient and display quality in Physiotherapy Equipments.
|
|
|
AMP-032501 : HYDROTHERAPY TANK (T. Shape) |
|
 |
Designed for permanent installations with direct connections to drain, Hot & Cold water supply and overflow. Constructed of heavy gauge(14 & 16gauge) stainless steel sheet, electrically Argon welded tank is shaped to Butterfly modified figure. The shape & dimensions of the tank allows various arm & leg exercises to be carried out without hitting to the sides. The recessed areas at the head and sides of the bath provide good access for the therapist when monitoring & assisting the patient.
SPECIFICATIONS :
- Overall dimension. : 266cm x 196cm x 86cm high.
- Inside dimension. : Length to inset 218cm. Width upper part 183cm. Width of middle narrow part 89cm. Width of lower part 135cm. Depth is 56cm.
- Turbine Ejectors, Aerators & Carriages : TWO, with 1/2 h.p. motors. Ejectors with elevators on ball bearing carriages.
- Power Supply. : 220 V AC.
- Accessories. : One digital thermometer, 2 water inlets, drain and overflow pipes with all necessary fitting. Adjustable Head-Rest, Body Stretcher and Sitting seat fitted with nylon cloth.
- Finish. : Tank is finished bright inside and painted outside.
Note : A separate room or hall is required for this unit with 220V AC power and hot & cold water supply
with drainage.
|
|
|
| |
|

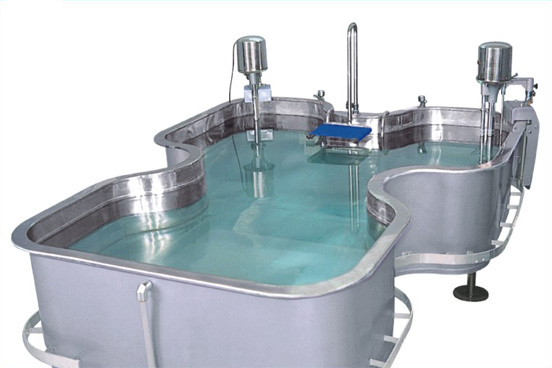

AMP-032502 : HYDROTHERAPY TANK (Butterfly Bath) |
|
 |
Designed for permanent installations with direct connections to drain, Hot & Cold water supply and overflow. Constructed of heavy gauge(14 & 16gauge) stainless steel sheet, electrically Argon welded tank is shaped to Butterfly modified figure. The shape & dimensions of the tank allows various arm & leg exercises to be carried out without hitting to the sides. The recessed areas at the head and sides of the bath provide good access for the therapist when monitoring & assisting the patient.
SPECIFICATIONS :
- Overall dimension. : 266cm x 196cm x 86cm high.
- Inside dimension. : Length to inset 218cm. Width upper part 183cm. Width of middle narrow part 89cm. Width of lower part 135cm. Depth is 56cm.
- Turbine Ejectors, Aerators & Carriages : TWO, with 1/2 h.p. motors. Ejectors with elevators on ball bearing carriages.
- Power Supply. : 220 V AC.
- Accessories. : One digital thermometer, 2 water inlets, drain and overflow pipes with all necessary fitting. Adjustable Head-Rest, Body Stretcher and Sitting seat fitted with nylon cloth.
- Finish. : Tank is finished bright inside and painted outside.
Note : A separate room or hall is required for this unit with 220V AC power and hot & cold water supply
with drainage.
|
|
|
| |
|

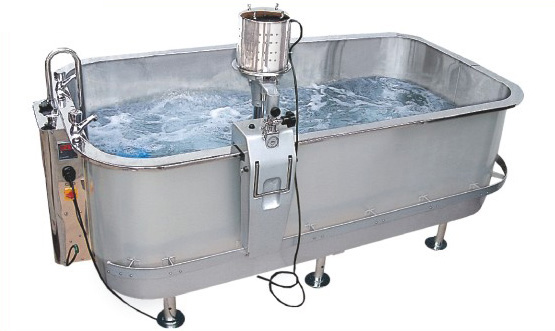

AMP-032503 : HYDROTHERAPY TANK (Rectangular shape) |
|
 |
| The compact, rectangular design, full body tank for hydromassage. The hydrotherapy tank with polished interior, measures : 200cm long x 100cm wide x 50cm deep from inside. Unit comes with ONE motorized electric turbine ejectors and aerators with turbine carriages & elevators, Digital Thermometer, adjustabl Head-Rest fitted with nylon cloth. Tank is fitted with Two water inlets, One overflow and one Drain fittings. Tank is finished bright inside & painted outside.
|
|
|
| |
|
AMP-032504 : ACCESSORIES FOR HYDROTHERAPY TANK |
|
|
|
The optional accessories required for Hydrotherapy tank for conviniently handling of patients.
1. Hoist:
An Electric Hoist of 500 kg. capacity for lifting and lowering of patient in the tank. Works on 440 V. three phase A.C. power supply. Hoist is fitted with electric Travelling Trolley that moves the hoist side-ways on the`I' beam. Comes complete with S.S cross bar with eye hooks for stretcher.
2. Trolley:
Painted trolley frame, mounted on four 20cm. dia wheels for carring stainless steel Stretcher with nylon clothe & belts.
NOTE:
'I' beam of 8"x 4" size will provided by the department and got fixed 13 to 15 feet high from floor. Length of beam depends upon the size of the room. Minimum working length 12 feet. |
|
|
| |
|

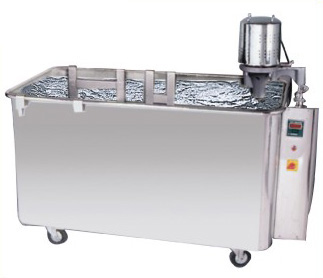

AMP-032506 : WHIRLPOOL BATH (for Arm, Foot & Lower Leg) |
|
 |
Whirl-Pool bath made of heavy gauge stainless steel sheet is sturdily fabricated with bright finish. Unit is fitted with a motorized turbine ejector and aerator on a spring loaded turbine elevator, digital temperature indicator cum controller and immersion heater. Provides effective hydro massage of arms, hips, legs, knees and feet. Provided with drain pipe for emptying. No plumbing required.
SPECIFICATIONS :
- Construction. : 1.6mm thick Stainless Steel Sheet Tank is continuously welded with Argon Gas Arc welding and mounted on 10cm dia.4 heavy duty casters.
- Turbine. : Turbine Ejector-Aerator is powered by a vertically mounted 1/2 hp elc.motor & mounted on a spring loaded turbine elevator for height adjust.
- Size. : 90cm x 50cm x 70cm inside the Tank.
- Water Heater. : 2kw. special Heater, with cover.
- Temp. Control. : Digital Temperature Indicator cum Controller.
- Drainage. : Drainage system for emptying.
- Accessories. : Anodized Aluminum adjustable Seat with Arm rest.
- Power Supply. : 220V AC.
|
|
|
| |
|

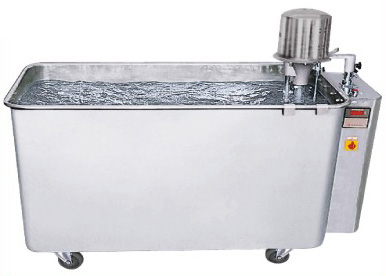

AMP-032507 : WHIRLPOOL BATH (Large Size) |
|
 |
Extremity Whirl-pool is long, shallow & accessible to fit a variety of individual needs. Designed to treat the entire body, the unit can be beneficial for those suffering from Hip & Back conditions as well as upper Back, Neck & Shoulder problems.
SPECIFICATIONS :
- Construction. : 1.6mm thick Stainless Steel Sheet Tank is continuously welded with Argon Gas Arc welding and mounted on 10cm dia.4 heavy duty casters.
- Turbine. : Turbine Ejector-Aerator is powered by a vertically mounted 1/2 hp elc. motor & mounted on a spring loaded turbine elevator for height adjust.
- Size. : 120cm x 60cm x 60cm inside the Tank.
- Water Heater. : 2kw. special Heater, with cover.
- Temp. Control. : Digital Temprature Indicator cum Controller.
- Drainage. : Drainage system for emptying.
- Accessories. : Anodized Aluminium adjustable Seat with Arm rest.
- Power Supply. : 220V AC.
|
|
|
| |
|

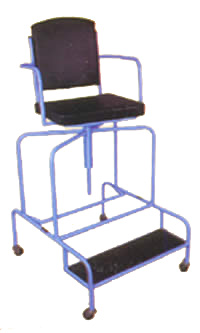

AMP-032509 : HIGH CHAIR (For use with Whirlpool Bath) |
|
 |
Used with Whirlpool Baths for Lower Leg & Foot hydro Massage. Broad based tubular steel frame chair is fitted with foam padded, revolving, Seat and Back for height adjustment. Height is adjustable from 80cm to 100cm. Comes with rubber treaded foot step. Fitted with four wheels of 5cm dia. Finished oven baked.
|
|
|
| |
|

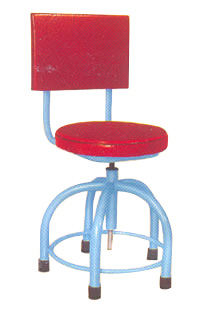

AMP-032510 : LOW CHAIR ADJUSTABLE (Large Size) |
|
 |
Used with Whirlpool Baths for arm and hand hydro massage. Revolving Seat is adjustable in height from 40cm to 55cm. Painted tubular steel construction, fitted with upholsteres seat and back.
|
|
|
| |
